| Welding Cable
Copper Conductor TRS/ HOFR Compound Covered (Synthetic
Blended) |
|
|
Nominal Cross Sectional
area of conductor (mm)
|
Number/
Nom.
Dia of Wires*
(mm)
|
Thickness of
Insulation
(Nom)
(mm)
|
General Purpose
Compound
|
HOFR
Compound
|
|
CURRENT RATING
AT MAX. DUTY CYCLE
|
|
Amps.
|
Amps.
|
|
100%
|
60%
|
30%
|
100%
|
60%
|
30%
|
|
16
|
510/0.2
|
2.0
|
94
|
121
|
172
|
135
|
174
|
246
|
|
25
|
796./0.2
|
2.0
|
125
|
161
|
228
|
177
|
228
|
343
|
|
35
|
1114/0.2
|
2.0
|
156
|
201
|
285
|
221
|
285
|
403
|
|
50
|
707/0.3
|
2.2
|
197
|
254
|
360
|
279
|
360
|
509
|
|
70
|
990/0.3
|
2.4
|
248
|
320
|
453
|
352
|
454
|
643
|
|
95
|
1344/0.3
|
2.6
|
299
|
386
|
546
|
424
|
547
|
774
|
|
Note : Supplied in 100/50 mtrs. length
in coil packing.
* The number & diameter of conductor strands
are for reference only. |
|
|
| |
|
|

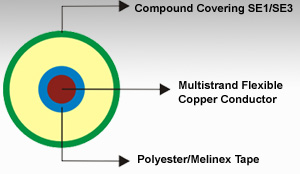

| Construction : |
| Conductor |
:
|
Plain annealed
copper conductor,
(flexible) as per IS : 8130 |
| Separator |
:
|
Polyester tape. |
| Covering |
:
|
General purpose compound.
- SE1 type or SE3
- Colour : Black
Any other colour on specific request can
also be supplied
|
|
|
|
| -- Welding
Cable Aluminium Conductor TRS/ HOFR Compound Covered (Synthetic
Blended) |
|
|
|
|
Nominal Cross Sectional
area of conductor (mm)
|
Number/
Nom.
Dia of Wires*
(mm)
|
Thickness of
Insulation
(Nom)
(mm)
|
General Purpose
Compound
|
HOFR
Compound
|
|
CURRENT RATING
AT MAX. DUTY CYCLE
|
|
Amps.
|
Amps.
|
|
100%
|
60%
|
30%
|
100%
|
60%
|
30%
|
|
25
|
355/0.3
|
2.0
|
100
|
129
|
183
|
144
|
186
|
263
|
|
35
|
495/0.3
|
2.0
|
123
|
159
|
225
|
176
|
227
|
321
|
|
50
|
707/0.3
|
2.2
|
155
|
200
|
283
|
222
|
287
|
405
|
|
70
|
990/0.3
|
2.4
|
196
|
253
|
358
|
280
|
361
|
511
|
|
95
|
1344/0.3
|
2.6
|
237
|
306
|
433
|
339
|
438
|
619
|
|
120
|
1697/0.3
|
2.8
|
283
|
365
|
517
|
404
|
522
|
738
|
|
Note : Supplied in 100/50 mtrs. length
in coil packing.
* The number & diameter of conductor strands
are for reference only. |
|
|
| |
|
|

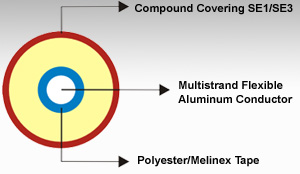

| Conductor |
:
|
Aluminium conductor
multistrand flexible
as per IS : 8130. |
| Separator |
:
|
Polyester tape/Melinex
Tape. |
| Covering |
:
|
General purpose compound.
- SE1 type or SE3
- Colour : Black
Any other colour on specific request can
also be supplied
|
|
|
|
