| Jain weld house offers a series of ARMAC
portable arc welders optimized to be the most rugged & reliable
STICK welders , TIG welders, MIG welders , BUTT welders , SPOT
WELDERS , PUG cutters in the market. |
| |
| Why ARMAC Automat? |
|
- Welds light guage material or thick plates
- High welding speed can be obtained upto 4 times faster
stick welding.
- Reducing repair or construction time.
- A further advantage is that the same equipment used for
MIG welding also performs flux cored welding. Rather than
running a solid wire coupled with a shielding gas, flux
cored welding uses self-shielded wire with flux inside.
|
| Features: |
- Welds all common metals carbon steel, stainless steel,
aluminum.
- Continuous wire feed, which minimizes starts and stop.
- Increased metal deposition which is beneficial for hard
facing.
- Minimum Maintenance.
- High efficiency.
- Power saving.
- Low running cost
|
|
|

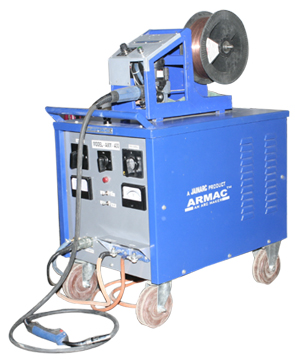

| Mig / Mag CO2 Welding Machine |
|
| Power Source |
- Constant Voltage.
- Fitted with Amps & Volt Meter.
- Toggal Button For gas & OCV Checking.
|
| Equipments Provided |
- Power source, wire feeder
- Flow meter, pressure regulator & gas pre-heater.
|
| Wire Feeder |
- Most easy maintenance wire feeder with 2 roll/4
quick release type.
- D.C. DrivePermanent magnet motor to maintain
constant speed, Push button for wire inching.
|
| Torch |
- Heavy duty, light weight & most flexible
torch
|
|
|
| |
|
TECHINICAL SPECIFICATION
COVERING IS-7931
|
|
|
MODEL |
Automat
AXM-250
|
Automat
AXM-400
|
Automat
AXM-600
|
|
Welding Curreent Range
|
250 A
|
400 A
|
600 A
|
|
Input Supply Rating
|
415 V-3Ph, 50 Hz
|
415 V-3Ph, 50 Hz
|
415 V-3Ph, 50 Hz
|
|
Open Circuit Voltage
|
18-38 V
|
18-52V
|
18-56V
|
|
Welding Current @ 60% D/c
|
250A
|
400A
|
600A
|
|
Welding Current @100% D/c
|
180A
|
315A
|
480A
|
|
Input Supply Rating @ 60% D/c
|
8.8KVA
|
22.5 KVA
|
35 KVA
|
|
Input Supply Rating @ 100% D/C
|
6.5 KVA
|
17 KVA
|
27 KVA
|
|
Cooling
|
F O R C
E D A I R
C O O L E
D
|
|
Isolation Class
|
H
|
H
|
H
|
|
Dimensions (LxWxH) mm
|
780x460x700
|
790x510x725
|
870x600x820
|
|
Weight Kg
|
100
|
135
|
170
|
| WIRE
FEEDER |
|
Wire Size Steel
|
0.8
|
1.2 mm
|
1.6 mm
|
|
Aluminum
|
1.2 mm
|
1.6 mm
|
2 mm
|
|
Speed Range Min.
|
0-18
|
0-18
|
0-18
|
|
Drive
|
2 Roll
|
2 Roll
|
4 Roll
|
| Control |
THYRISTOR
|
PRINTER
|
CIRCUIT
|
|
Overall Dia mm Spool Size
|
300
|
300
|
300
|
|
Bore mm
|
50
|
50
|
50
|
|
Weight Appro Kg
|
10
|
10
|
10
|
|
Torch
|
25 A.K
|
36 KD
|
40 KD
|
|
|
| |
|
Note:
In view of continuous development, we reserve the right to
modify the design and dimensions without notice.
Duty cycles are applicable for 5
minutes at 40 °C.
|
