| Jain weld house offers a series of ARMAC
portable arc welders optimized to be the most rugged & reliable
STICK welders , TIG welders, MIG welders , BUTT welders , SPOT
WELDERS , PUG cutters in the market. |
|
| Why ARMAC Multipurpose? |
| It is a Multipurpose argon set suitable for
both S.S and Aluminium Tig Welding. ARMAC 400 is a very rugged
stick/tig welding machines & is designed specifically for
the industrial market. The concept to design such a machine
is to make it cost - effective, efficient, flexible & portable.
Stick welding power sources deliver inexpensive options for
welding versatility, portability & reliability. |
|
| Features:- |
|
- Suitable for both S.S and Aluminium Tig Welding.
- A better & Quicker job with less spatter.
- Good are stricking properties with higher efficiency.
- Continious amperage adjustment (mechnical).
- Forced Draft Fan Cooling (In case Air Cooled).
- Protective Secondry & Primary Terminal under hinged
door.
- Compact in size and light in weight.
- Mounted on Wheel.
- Minimum maintenance.
- Power saving.
|
|
|

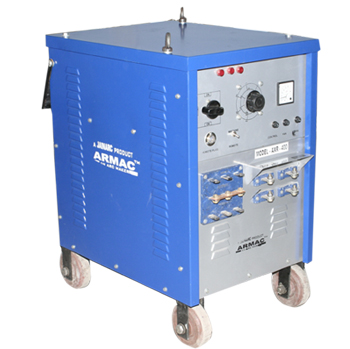

| AC/DC Welding
Machine |
|
| Forced
Air Cooled>> |
| |
|
TECHNICAL
SPECIFICATION COVERING IS -1851 |
|
|
|
Model Multipurpose |
|
AXB-400 |
|
1. |
Welding Current range |
AMPS. |
10-400 |
|
2. |
Max. Cont. current at 60%
Duty Cycle |
AMPS. |
400 |
|
3. |
Max.
Cont. current at 100% Duty Cycle |
AMPS. |
240 |
|
4. |
Open Circuit Voltage |
VOLTS |
70 |
|
5. |
KVA Rating at 60% Duty
Cycle |
KVA |
26 |
|
6. |
Input Supply |
VOLTS |
2 lines of 3 Phase |
|
7. |
Frequency |
HZ |
50HZ |
|
8. |
Cooling |
TYPE |
Forced Air Cooled |
|
9. |
Insulation |
CLASS |
H |
|
10. |
Type of output Current
Regulation |
MODE |
STEPLESS REGULATION |
|
|
|
| |
|
| |
|
|
| Pug Cutting
Machine |
|
| Technical Description
of Pug Cutting Machine |
| Cutting Capacity |
:
|
0-300mm Thick mild steel (Approx).
Bevel cutting 75mm thick up to 45 either side
of vertical. |
| Cutting speed Range |
:
|
190-830 mm/ with 220 volts AC, 1s Hz, 1/2 HP electric power motor with rotary
resistant control |
| Cutter PMC-3 |
:
|
Vertical adjustment 70mm injector type-Horizental
adjustment 90 mm.
Gas Hose connections 1/4" BSP LH for fuel
gas & RH for oxygen. |
| Standard Acessories |
:
|
A-16 cutting
Nozzle (1-16"), A-12. Cutting Nozzle (3/64"),
9 Mtrs.3 - core cable, hose nut spanner &
head nut spanner. |
| On Request |
:
|
Pug cutter
headcan also be supply in Nozzle Mixing head
w/o injector |
|
|
|
| |
|
Note:
In view of continuous development, we reserve the right to
modify the design and dimensions without notice.
Duty cycles are applicable for 5
minutes at 40 °C.
|
