| Jain weld house offers a series of ARMAC
portable arc welders optimized to be the most rugged & reliable
STICK welders , TIG welders, MIG welders , BUTT welders , SPOT
WELDERS , PUG cutters in the market. |
|
| Why Armac Stick Plus ? |
| Stick the most basic of welding machine processor
offers the easiest options for joining steel & other metals.
Stick welding power sources deliver inexpensive options for
welding versatility, portability & reliability. Stick joins
metal when arc is stuck between the electrode & the work
piece, creating a weld pool & depositing a consumable metal
electrode into the join. The electrodes protective coating also
acts as a shielding gas, protecting the weld & ensuring
its purity & strength. |
|
| Features:- |
|
- A better & Quicker job with less spatter.
- Good are stricking properties with higher efficiency.
- Continious amperage adjustment (mechnical).
- Forced Draft Fan Cooling (In case Air Cooled).
- Protective Secondry & Primary Terminal under hinged
door.
- Compact in size and light in weight.
- Mounted on Wheel.
- Minimum maintenance.
- Power saving.
|
|
|

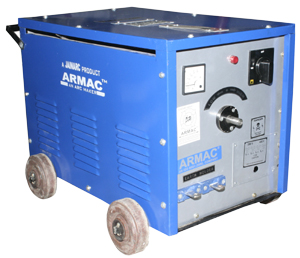

| Armac Unique Welding
Machine |
|
| ARMAC UNIQUE
>>Heavy Duty |
AVAILABLE IN 1/2/3 PHASE |
|
|
TECHNICAL
SPECIFICATION COVERING IS -1851 |
|
Model
- Unique |
|
Unique AXU-300 |
Unique AXU-400 |
Unique AXU-600 |
|
1. |
Welding
Current range |
AMPS. |
30-300 |
30-400 |
40-600 |
|
2. |
Max.
Cont. current at 60% Duty Cycle |
AMPS. |
300 |
400 |
600 |
|
3. |
Max.
Cont. current at 100% Duty Cycle |
AMPS. |
180 |
240 |
360 |
|
4. |
Open
Circuit Voltage |
VOLTS |
65 |
70 |
80 |
|
5. |
KVA
Rating at 60% Duty Cycle |
KVA |
19.5 |
26 |
32.5 |
|
6. |
Input
supply |
VOLTS |
2 Lines of 3 Phase |
|
7. |
Frequency |
HZ |
50HZ |
50HZ |
50HZ |
|
8. |
Cooling |
Forced Air Cooled |
|
9. |
Insulation |
CLASS |
H |
H |
H |
|
10. |
Type
of output Current Regulation |
STEPLESS REGULATION |
|
|
|
|
|
|

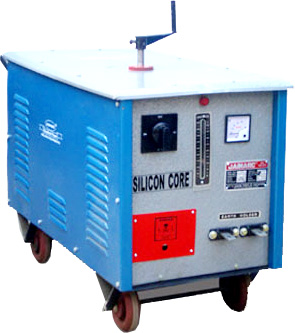

| Armac Premium
Welding Machine |
|
| Premium>> |
|
|
TECHNICAL
SPECIFICATION
|
|
Model
ARMAC AC |
|
AXP-350
|
AXP-450
|
AXP-600
|
|
1.
|
Welding
Current range |
AMPS.
|
30-350 A
|
30-450 A
|
40-500A
|
|
2.
|
Max.
Cont. current at 60% Duty Cycle |
AMPS.
|
350 A
|
450 A
|
600 A
|
|
3.
|
Max.
Cont. current at 100% Duty Cycle |
AMPS.
|
180 A
|
240 A
|
360 A
|
|
4.
|
Open
Circuit Voltage |
VOLTS
|
65 V
|
70 V
|
80 V
|
|
5.
|
KVA
Rating at 60% Duty Cycle |
KVA
|
19.5
|
26
|
32.5
|
|
6.
|
Input
supply |
VOLTS
|
2 Lines of 3 Phase
|
|
7.
|
Frequency |
HZ
|
50HZ
|
50HZ
|
50HZ
|
|
8.
|
Cooling |
Type
|
Forced Air Cooled
|
|
9.
|
Insulation |
CLASS
|
H
|
H
|
H
|
|
10.
|
Type
of output Current Regulation |
MODE
|
STEPLESS REGULATION
|
|
|
|
|
| Why Armac Excellent 10 ? |
|
| ARMAC Excellent 10 is a very rugged stick welding
machines & is designed specifically for the industrial market.
The concept to design such a machine is to make it cost - effective,
efficient, flexible & portable. |
|
|
|
| ARMAC Excellent
10>> |
|
|
TECHNICAL
SPECIFICATION COVERING IS -1851
|
|
Model
- Excellent 10 |
|
AXE-10 |
AXE-8
|
|
1.
|
Welding
Current range |
AMPS.
|
20-150
|
20-250
|
|
2.
|
Max.
Cont. current at 35% Duty Cycle |
AMPS.
|
150
|
250
|
|
3.
|
Open
Circuit Voltage |
VOLTS
|
40
|
50
|
|
4.
|
KVA
Rating at 60% Duty Cycle |
KVA
|
8.5
|
12
|
|
5.
|
Input
supply Voltage |
VOLTS
|
220 V
|
220 V
|
|
6.
|
Frequency |
HZ
|
50
|
50
|
|
7.
|
Cooling |
Type
|
Forced Air Cooled
|
Forced Air Cooled
|
|
8.
|
Insulation |
CLASS
|
H
|
H
|
|
9.
|
Type
of output Current Regulation |
MODE
|
Rotary
|
P/N Type
|
|
|
|
| |
|
| |
|
|
| Pin Type
Air Cooled/ Oil Cooled >> |
|
|
TECHNICAL
SPECIFICATION COVERING IS -1851
|
|
Model
- Stickplus |
|
Stickplus AXS-150
|
Stickplus
AXS-250
|
Stickplus
AXS-350
|
|
1.
|
Welding
Current range |
AMPS.
|
20-150
|
20-250
|
30-350
|
|
2.
|
Max.
Cont. current at 60% Duty Cycle |
AMPS.
|
150
|
250
|
350
|
|
3.
|
Max.
Cont. current at 100% Duty Cycle |
AMPS.
|
90
|
120
|
180
|
|
4.
|
Open
Circuit Voltage |
VOLTS
|
40
|
50
|
55
|
|
5.
|
KVA
Rating at 60% Duty Cycle |
KVA
|
8.5
|
12.0
|
19.5
|
|
6.
|
Input
supply |
VOLTS
|
380/ 415/ 440 Two Lines
of 3 Phase
|
|
7.
|
Frequency |
HZ
|
50HZ
|
50HZ
|
50HZ
|
|
8.
|
Cooling |
Type
|
Forced Air/ Oil Natural
|
|
9.
|
Insulation |
CLASS
|
H
|
H
|
H
|
|
10.
|
Type
of output Current Regulation |
MODE
|
Rotary - Pin Type
|
|
|
|
| |
|
Note:
In view of continuous development, we reserve the right to
modify the design and dimensions without notice.
Duty cycles are applicable for 5 minutes
at 40 °C.
|
